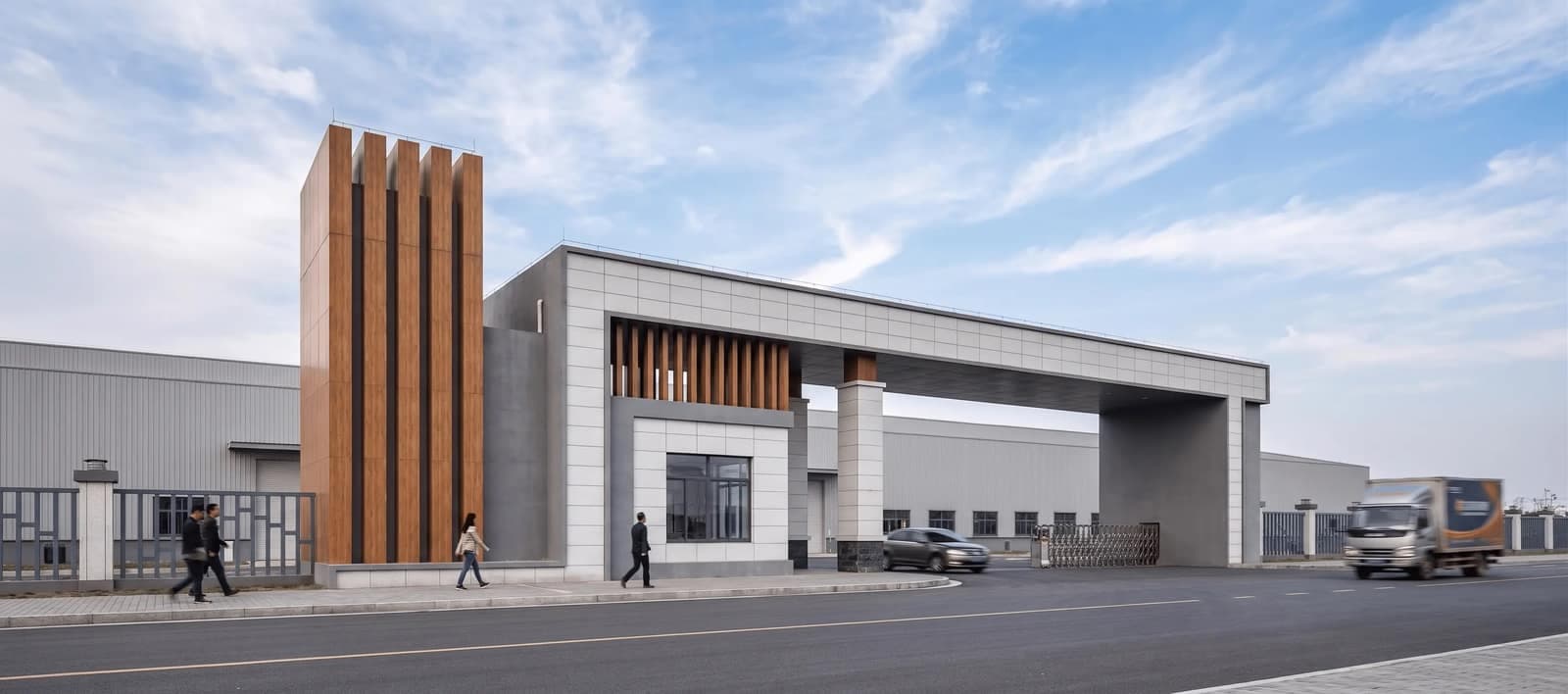

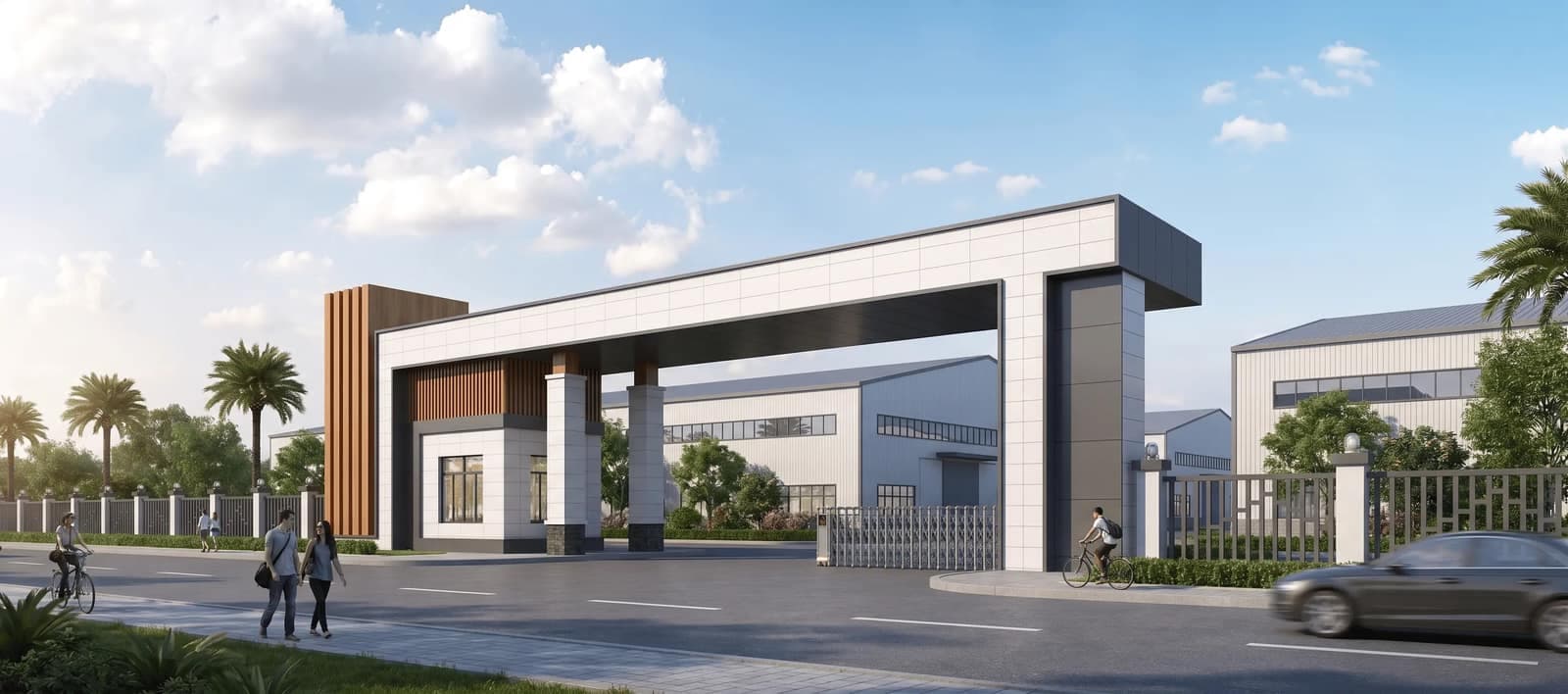

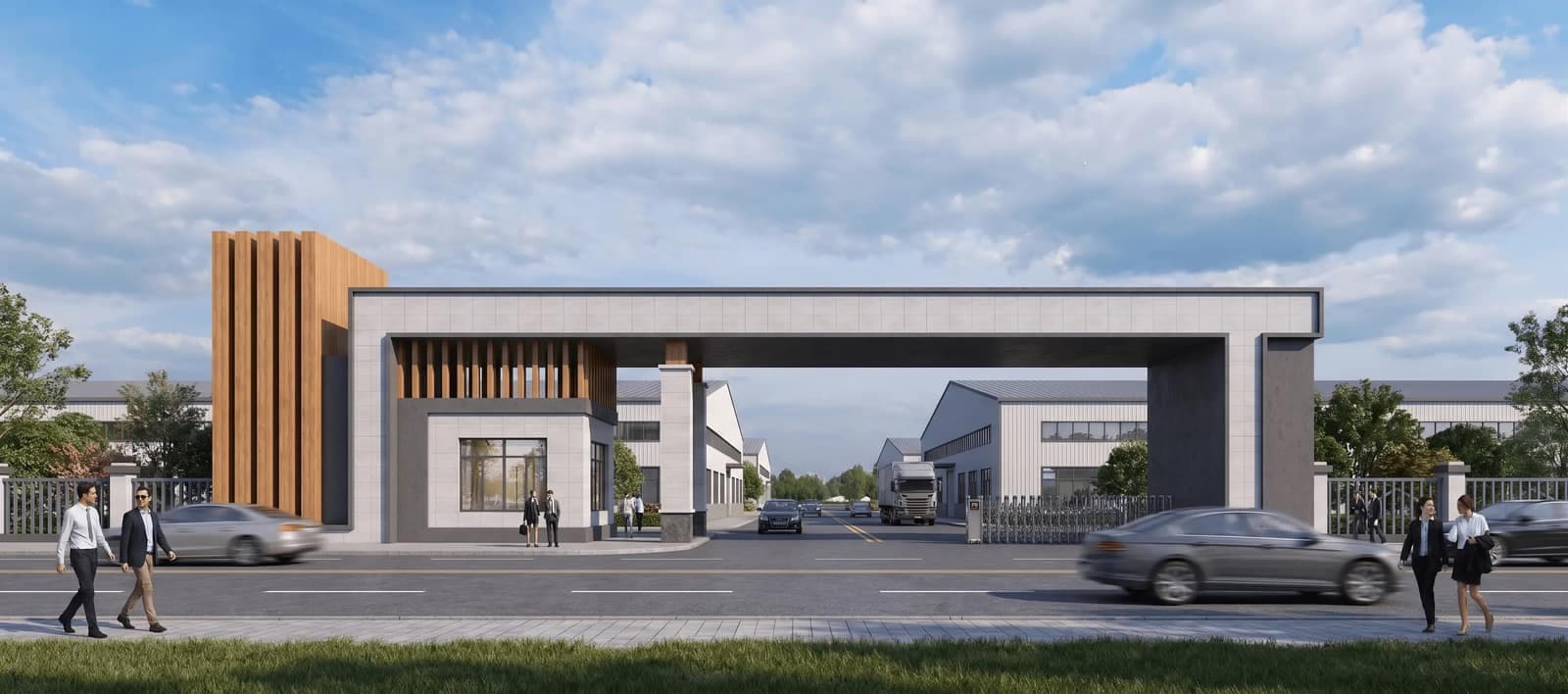

Steel Structure Factory Gate

A steel structure factory gate is a supporting building solution for industrial parks, manufacturing plants, logistics centers, warehouse bases, corporate headquarters, and large industrial facilities.

It is not only the main access point for vehicles and personnel, but also an important part of the company’s external image. A well-designed factory gate can improve the visibility, order, security, and professional appearance of the entire factory area.

This type of gate is usually composed of a steel frame portal, main columns, top beams, guardhouse, boundary wall system, metal decorative panels, glass doors and windows, automatic sliding gate, lighting system, and factory entrance road.

According to project requirements, it can be designed in a modern minimalist style, industrial style, corporate headquarters style, industrial park entrance style, or customized brand image style.

The size, span, height, facade material, and color can be adjusted according to the factory scale, road width, vehicle access requirements, and corporate visual identity.

From a structural design perspective, a steel structure factory gate must consider the stability of the long-span portal frame, wind resistance, column base connection, top beam stiffness, guardhouse connection, boundary wall coordination, and later installation of automatic gate systems.

For logistics parks, warehouse bases, and large production plants, the entrance must often accommodate trucks, container vehicles, engineering vehicles, and employee vehicles. Therefore, clear opening width, clear height, turning space, and traffic organization should be planned in advance.

The main structure can use H-section steel, box columns, square tubes, rectangular tubes, steel beams, connection plates, and bracing components.

The exterior facade can be combined with aluminum panels, metal decorative panels, wood-grain panels, glass, stone-like panels, color steel sheets, or other architectural cladding materials to keep the factory gate consistent with the overall plant architecture.

The guardhouse can integrate a duty room, registration window, monitoring equipment, access control system, and rest area to support entrance management. In the manufacturing process, steel components can be fabricated in the factory according to detailed shop drawings.

The typical process includes material inspection, CNC cutting, assembly, welding, drilling, straightening, grinding, surface treatment, marking, and packaging.

For gate columns, portal beams, and decorative steel components, dimensional accuracy and hole position must be carefully controlled to ensure straight lines, accurate connections, and a clean appearance after installation. Welding and manual finishing are important parts of factory gate fabrication.

Before welding, the welding area should be cleaned. During welding, deformation should be controlled. After welding, grinding, correction, and visual inspection should be carried out.

For exposed steel members, decorative columns, guardhouse frames, metal facade connection points, and top beam edges, additional manual finishing can be applied to make the overall gate more refined, stable, and attractive. Surface treatment can be selected according to the project environment.

Common options include shot blasting, anti-rust primer, intermediate paint, finish paint, hot-dip galvanizing, or customized anti-corrosion coating systems. For coastal areas, humid regions, or outdoor factory entrances exposed to weather for a long time, anti-corrosion treatment is especially important.

Welds, edges, bolt holes, connection plates, and exposed steel parts should be carefully treated to improve long-term durability and reduce maintenance costs.

A steel structure factory gate has the advantages of short construction period, high structural strength, customizable appearance, efficient installation, and convenient maintenance.

We can provide structural design support, shop drawings, steel component fabrication, surface treatment, component numbering, export packaging, container loading support, and installation guidance documents based on the customer’s factory layout, entrance size, road width, corporate image requirements, and local project environment.
