Plant Steel Structure

Core Advantages of the Product A plant steel structure is not just a building frame. It is a structural solution for organizing production, circulation, equipment, storage and supporting functions within one coordinated industrial space.

For multi-storey plant projects, one of the biggest challenges is how to use limited land more efficiently while keeping internal functions clear and operations smooth. We can help you solve this by using a steel structure system that supports vertical development, flexible floor arrangement and clearer space division.

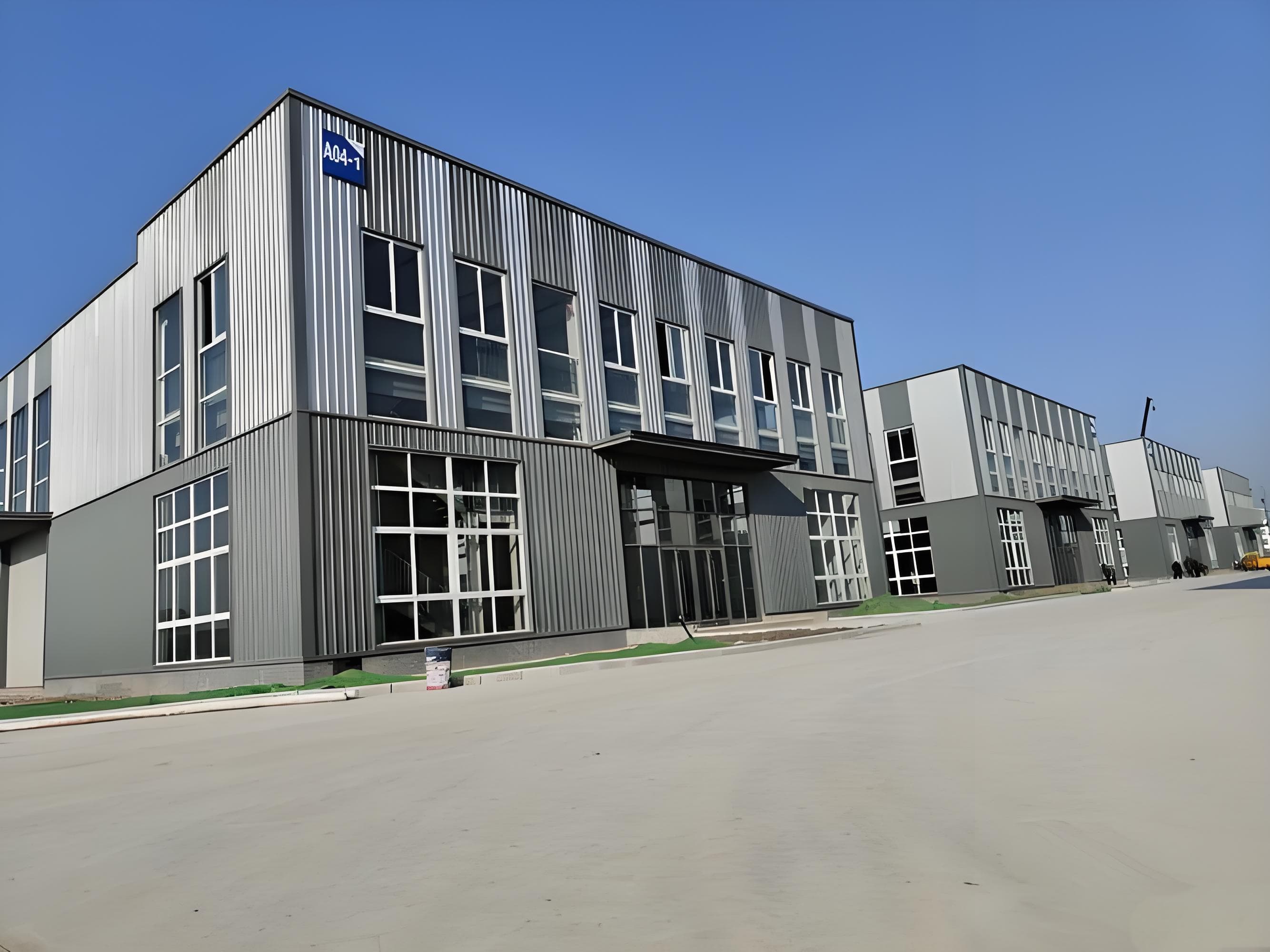

Compared with conventional low-rise industrial layouts, a multi-storey plant steel structure can make better use of site area and create more possibilities for combining production areas, storage zones, technical rooms, office functions and auxiliary spaces in one project.

This makes the building especially valuable when land cost is high, internal process flow is complex or future functional adjustment is expected. Instead of forcing all functions into a flat and oversized footprint, we can help you build upward in a more organized and more efficient way.

Another important advantage is adaptability. Industrial buildings often change with equipment, process layout and business needs.

A well-planned steel structure plant can provide more flexibility for floor use, circulation arrangement and future upgrading, so the building remains useful not only when it is completed, but also when operations evolve over time.

Technical Support We Can Provide Multi-storey plant steel structures involve much more than ordinary steel building supply. Floor loading, vertical circulation, equipment arrangement, usage zoning, structural transfer logic and future expansion all need to be considered together.

We can help you review these key conditions before fabrication begins, so the building is not only structurally feasible, but also better aligned with practical industrial use.

We use advanced structural design and detailing tools including PKPM, 3D3S, Midas, Sap2000 and Tekla, and we also apply BIM capability throughout the project lifecycle. This allows us to support design optimization, detailed modeling, drawing deepening and coordination between structure, fabrication and implementation.

We can help you reduce one very common problem in multi-storey industrial projects: the structural system looks complete in drawings, but once production and installation begin, the coordination between floors, equipment zones and practical use becomes inefficient.

By building technical logic earlier, we can help you make the project path clearer and more executable.

Our Strength A multi-story building project not only requires independent manufacturing capabilities, but also needs a supplier who can understand the complexity of the structure, can organize production stably and can coordinate project execution under pressure.

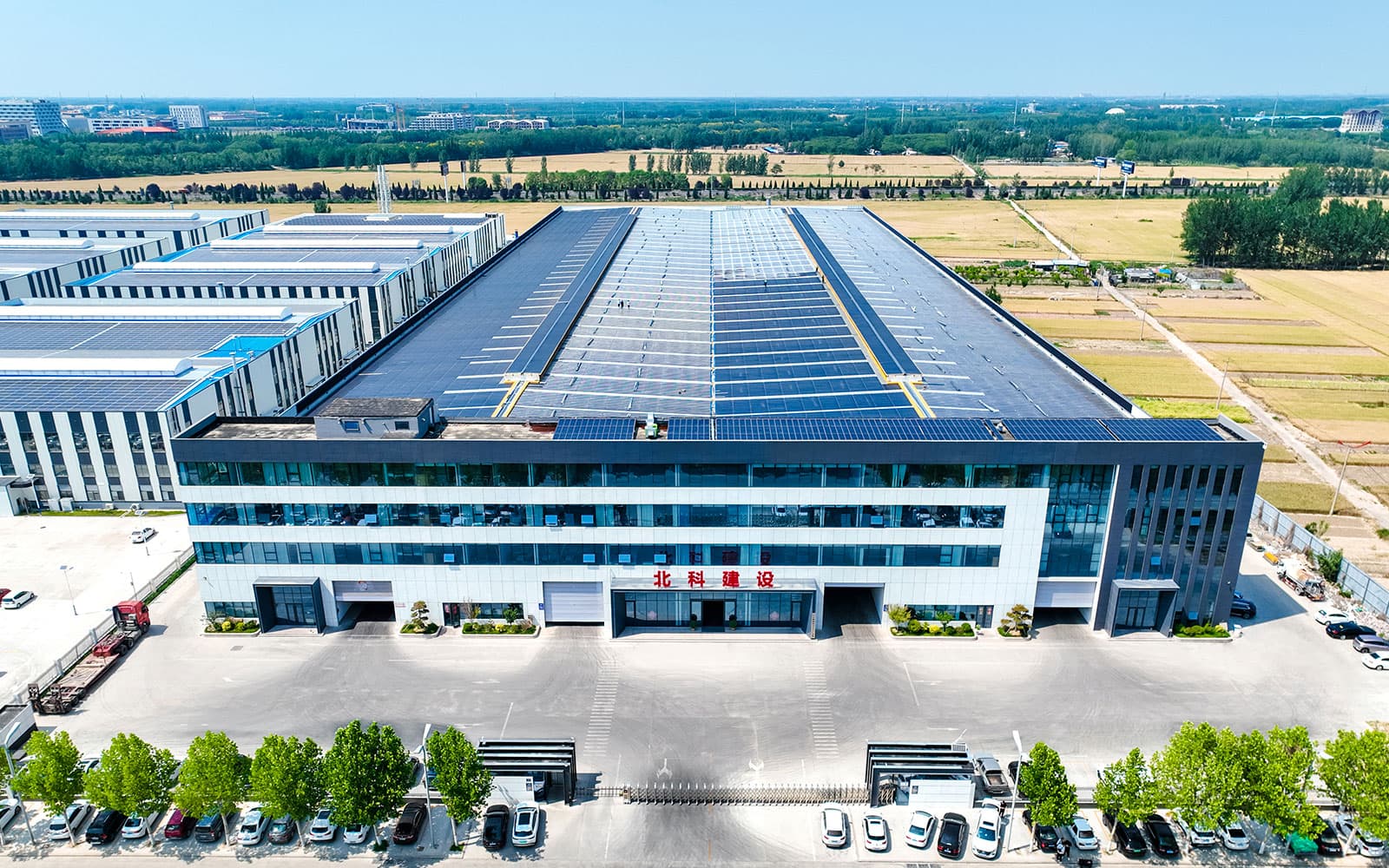

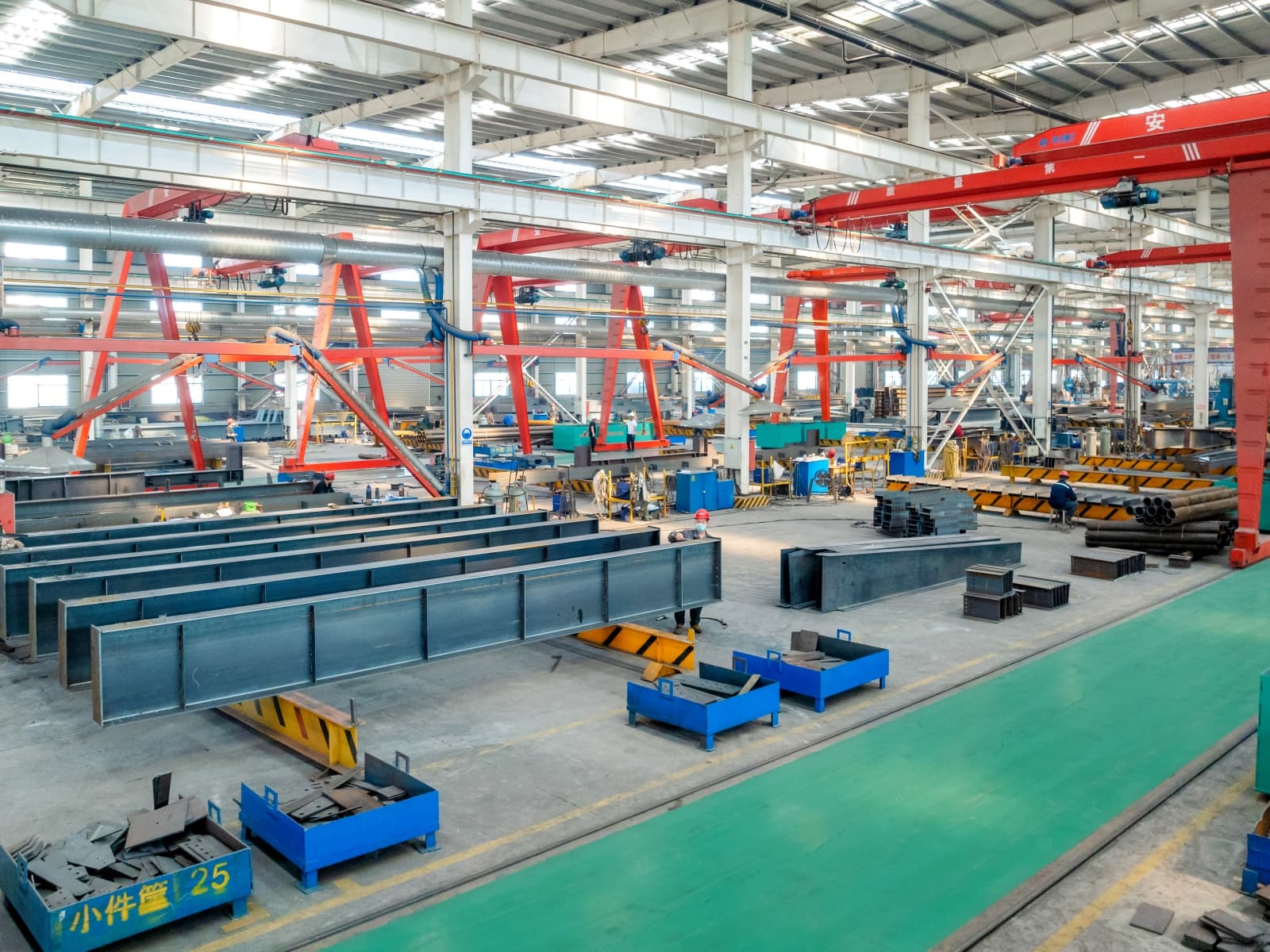

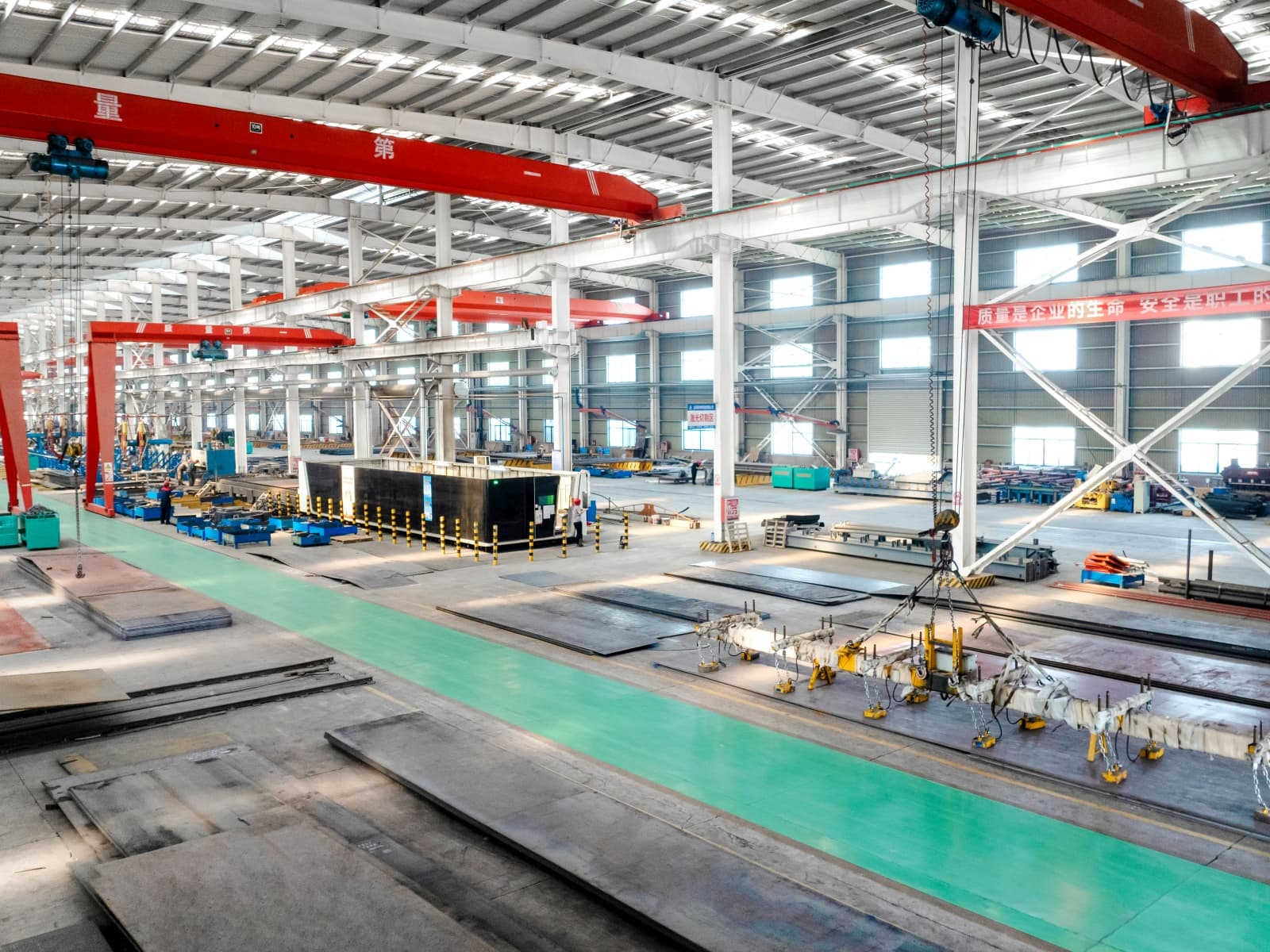

We have seven steel structure production lines with an annual capacity of 50,000 tons of various steel structure products, which guarantees that we can provide stronger manufacturing support for industrial building projects that require scale, consistency and progress control.

Our engineering experience also covers high-rise and complex steel structures, space steel structures, municipal bridge steel structures, clean industrial plants, intelligent logistics systems, coal chemical and new energy steel structures, nuclear power projects and overseas projects.

A broader experience background enhances our ability to understand the performance of complex structural systems not only on the drawings, but also in actual manufacturing and actual project execution.

We can help you provide one-stop services throughout the project process, from design drawings to project construction! r

Specification Specifications: main steel frame H section steel beam and columns, painted or hot dip galvanizing, galvanized C section or steel structure Secondary frame Hot dip galvanized C purlin, steel bracing , tie bar , knee brace , edge cover etc.

Roof panel Steel sheet, Alum-Zinc sheet , Alumnium sheet, EPS sandwich panel,glass fiber sandwich panel,rock wool sandwich panel,and PU sandwich panel etc. Wall panel Sandwich Panel or Corrugated Steel Sheet etc. Tie Rod Circular Steel Tube Brace Round Bar Knee Brace Angle Steel Roof Gutter Color Steel

Sheet, Alum-zinc sheet, Gal. sheet, Stainless steel Drawings & Quotation: (1) Customized design is welcomed. We will quote for you promptly. (2) In order to give you an exactly quotation and drawings, please let us know the length, width, eave height and local weather.

The above is for reference only,the specific required material components according to customer needs.

Material list Project sample Steel structure warehouse Building size Such as 78*30*8.5 m/ customized Main steel structure Steel column H(300-550)*200*6*10 mm , steel Q345 Steel beam H(300-550)*180*6*8 mm, H 300*180*6*8 mm,steel Q345 Second steel structure Roof purline C180*75*50*2.5 mm Wall purline C180*75*50*2.5 mm Cross support 20 round steel bar, steel Q 235 Column bracing 20 round steel bar, steel Q 235 Angle brace L 50*4 Angle steel , steel Q 235 Tie bar 89*3 mm, steel Q235 Roof and wall panel Roof panel 50/80/100/150/200 mm sandwich panel (EPS, PU, Rock wool, Glass wool) Wall panel 50/80/100/150/200 mm sandwich panel (EPS, PU, Rock wool, Glass wool) Rolling up door Automatic rolling up door Single wing door Sandwich panel door Window Aluminum/ PVC sliding window with single glass Fittings Glass adhesive, self-tapping screw, etc Other fittings Embedded M 24 steel Q 235, process Intensive bolt Grade 10.9 Ordinary bolt Grade 4.85 We Provide One-Stop Solutions For plant steel structure projects, fragmentation usually creates more trouble than the structure itself.

If planning, detailing, fabrication, inspection, packing and delivery are handled by separate teams with weak connection, the project becomes harder to control and much easier to delay.

This is even more serious in multi-storey buildings, where one misalignment may affect multiple floors, multiple functions and multiple stages of execution.

We provide a one-stop solution that links technical communication, design optimization, detailing, fabrication, quality inspection, packing and delivery coordination into one organized workflow.

We can help you reduce unnecessary internal management pressure, shorten response chains and improve continuity from structural planning to final shipment. Instead of handling the project as disconnected tasks, we help you move it forward as one integrated process.

That is especially important when the building must support production, storage and auxiliary functions at the same time. Our Team and All-Day Project Support Behind every plant steel structure project is a team that keeps design, production and delivery moving together.

Our technical and project support team includes experienced engineering personnel who can stay involved in communication, drawing confirmation, coordination between structural and functional requirements, production follow-up and delivery preparation.

This continuous support helps maintain rhythm in projects that involve multiple floors, multiple functions and multiple technical interfaces. We can help you with all-day project support when the schedule is tight, the communication chain is long or the project requires repeated technical clarification.

Rather than leaving key issues waiting between stages, our team can stay connected and keep important matters moving in time. For multi-storey industrial buildings, strong team support is often what turns a technically possible project into a practically manageable one.

Technical Parameters 1 Wind Resistance Grade 12 2 Earthquake Resistance 8 Degree 3 Live load of corridor 2.0 kn square meter 4 External and internal wall heat transmission coefficient 0.35 k cal /m2hc 5 Roof live board 0.5 kn square meter 6 Suitable Temperature -50 ℃~+50℃ 7 Bearing load 150 kg square meter 8 Life span Over 50 years Contact Us Now If you are planning a plant steel structure project, contact us now.

We can help you evaluate a more suitable multi-storey industrial building solution based on your land conditions, floor use, loading requirements, process layout and available drawings, and support you from technical planning to fabrication and delivery.
